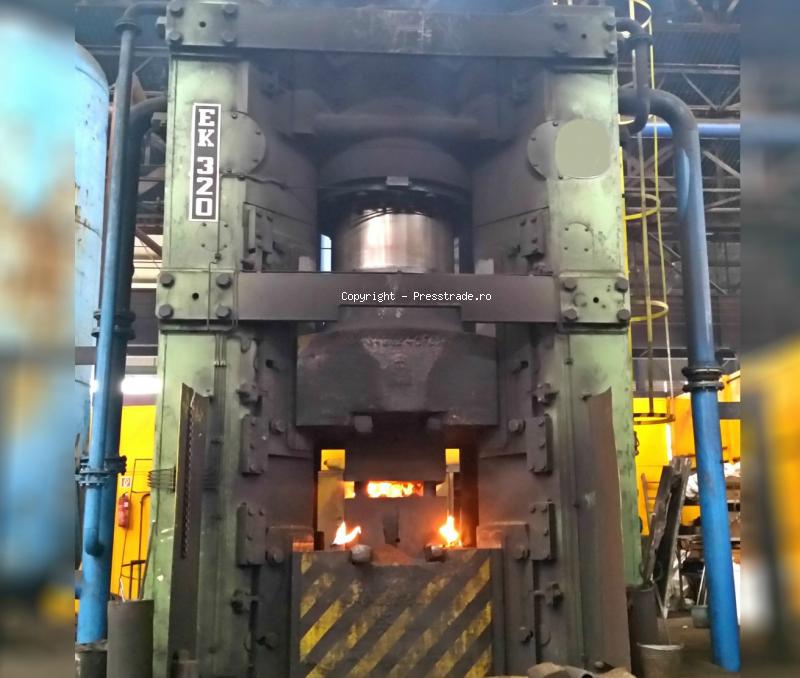

Counterblow forging hammer

Type EK 320

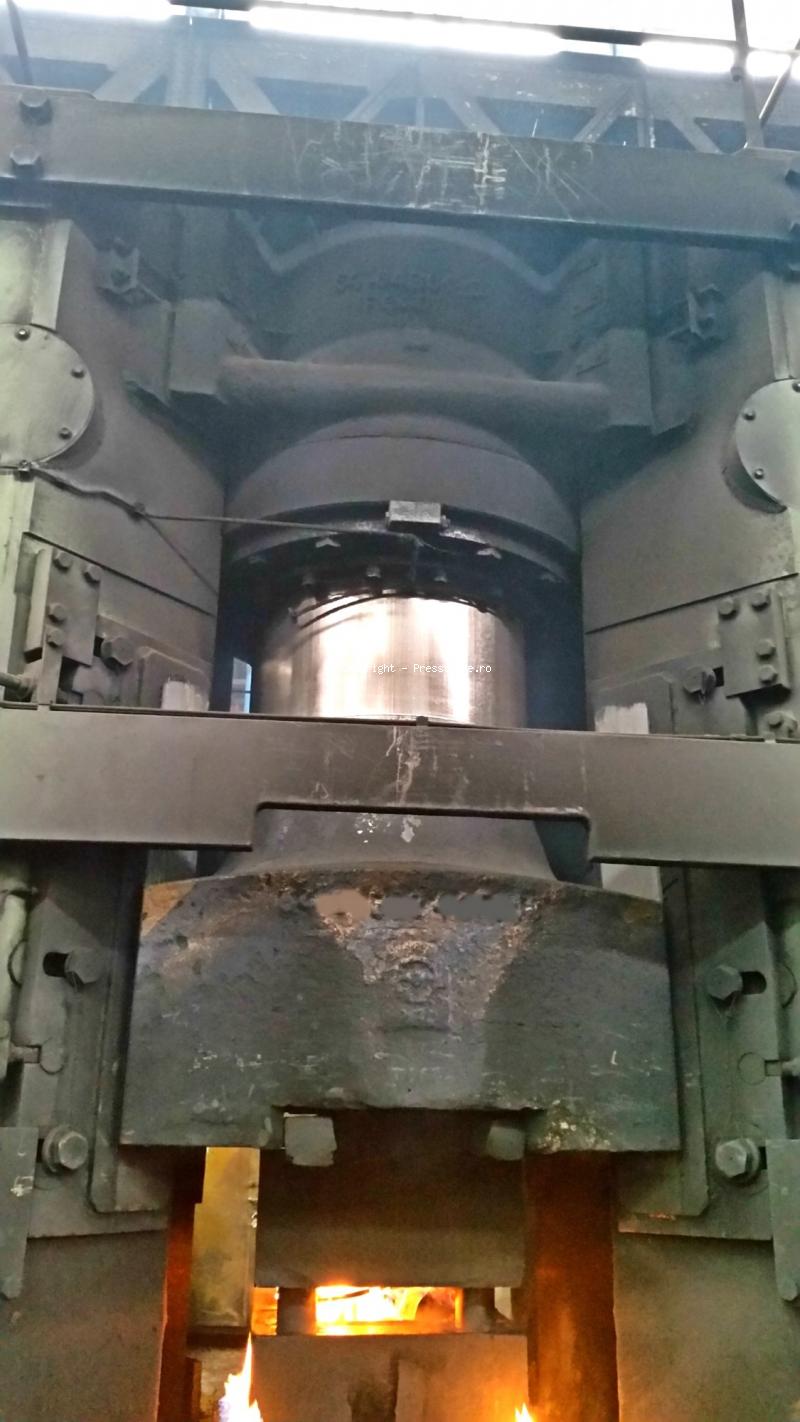

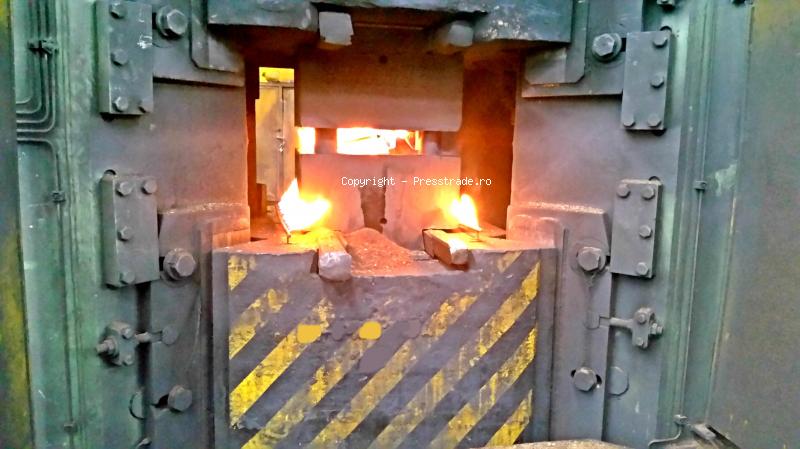

 Counterblow Hammer type EK 320 performs forging between two rams moving in opposite directions, on their impact plane.

 This counterblow hammer is suitable for single - die forging of different profiles made of steel and light metal.

Main technical details are:

impact energy                                                                           320 KJ

average number of blows/min                                                   6-12

weight of the workpiece to be forged                                   40-240 kg

full stroke of the rams (in case of min.die thickness)            1526 mm

distance between the guideways (open gap)                          1145 mm

air pressure to operate the machine                                          0,7 MPa

air consumption/blow in case of nominal impact energy   5,2 m³/blow



compressor performance                                                           140 kW

capacity of air tank required                                                         30 m³

weigh without anti-vibration material                                   150509 kg

total weight with anti vibration material                              180200 kg
