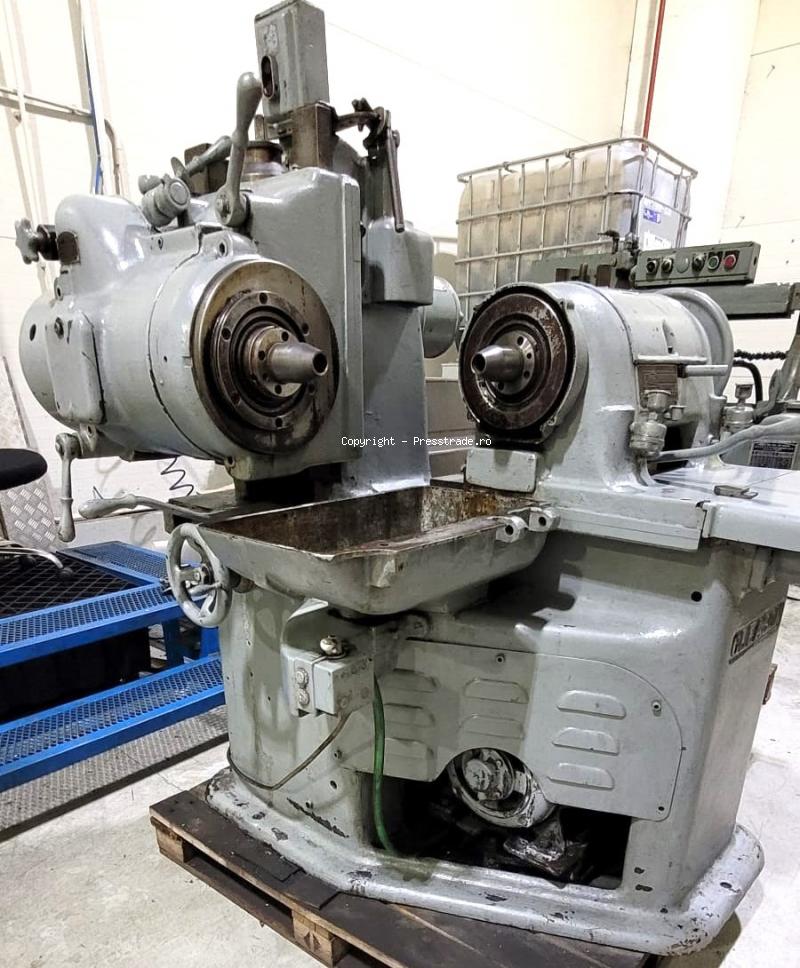

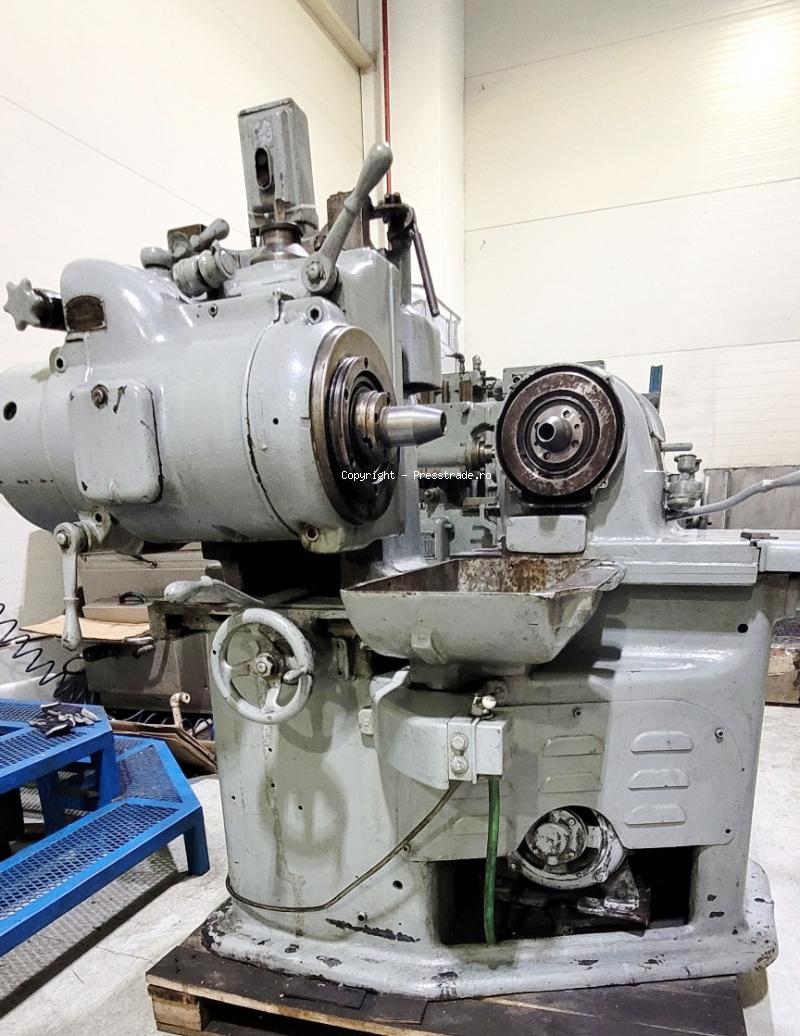

BEVEL GEAR TESTER GLEASON 17

Max. gear diameter: 20"

Offset of gear spindle above or below center of pinion spindle: 3-1/2" max.

Distance from center of gear spindle to nose of pinion spindle: 12" Max /, 6" Min.

Distance.from center of pinion spindle.to nose of gear spindle.: 7-3/4" Max, / 4 1/8" Min.

Max. speed of drive spindle.: 1200 RPM

Motor power: 5 HP

Floor space: 60" x 73"

Net Weight: approx. 2400 kg / 5300 lbs

Location: PRESSTRADE ROMANIA warehouse
