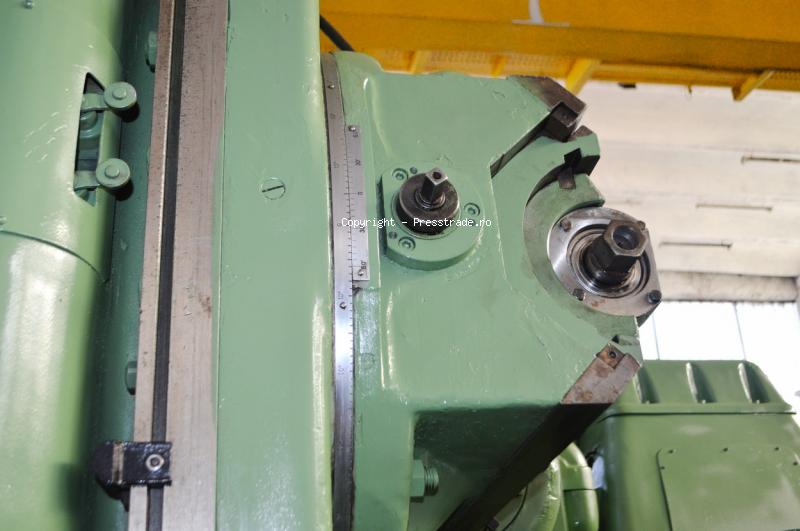

GEAR HOBBING MACHINE STANKO type 5K328A

Max. gear diameter:

       - with tailstock: 800 mm

       - without tailstock: 1250 mm

Max. module: 12 mm

Max. gear width: 560 mm

Min. number of teeth: 20

Inclination angle: +/- 60 degress

Table diameter: 1000 mm

Max. load on table: 2000 kg

Toolholder taper: Morse 6

Tool spindle speeds: 32 - 200 RPM

Working feeds:

   - vertical: 0,5 - 5,6 mm/rot

   - radial: 0,22 - 2,6 mm/rot

   - tangential: 0,07 - 2,58 mm/rot

Main motor powerl: 10 kW

Net weight of the machine: 14 to

Location: PRESSTRADE ROMANIA warehouse
