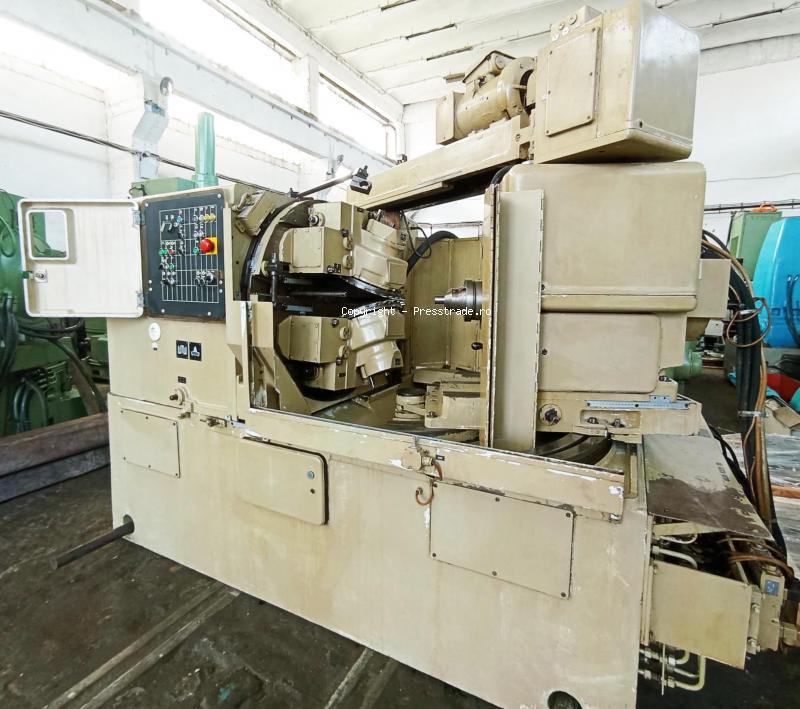

STRAIGHT BEVEL GEAR GENERATOR WMW MODUL ZFTK 250/1 KONVOID

The machine is designed to make straight bevel gears for agriculture and
construction machinery, machine tools, mining, aircraft and textile industry.
The machine can be used for single part production as well for series production.

Producer: WMW MODUL/Germany

Y.o.m. 1986

Main technical details:

Max. diameter of the gear wheel:            315 mm
Max. module:                                          10 mm
Min/max. number of teeth:                        6/100
Max. gear ratio:                                            1:6
Max. gear width:                                     45 mm
Cutting speed:                          35,5 - 71 rot/min
Net weight of the machine:                     6500 kg

Accessories:

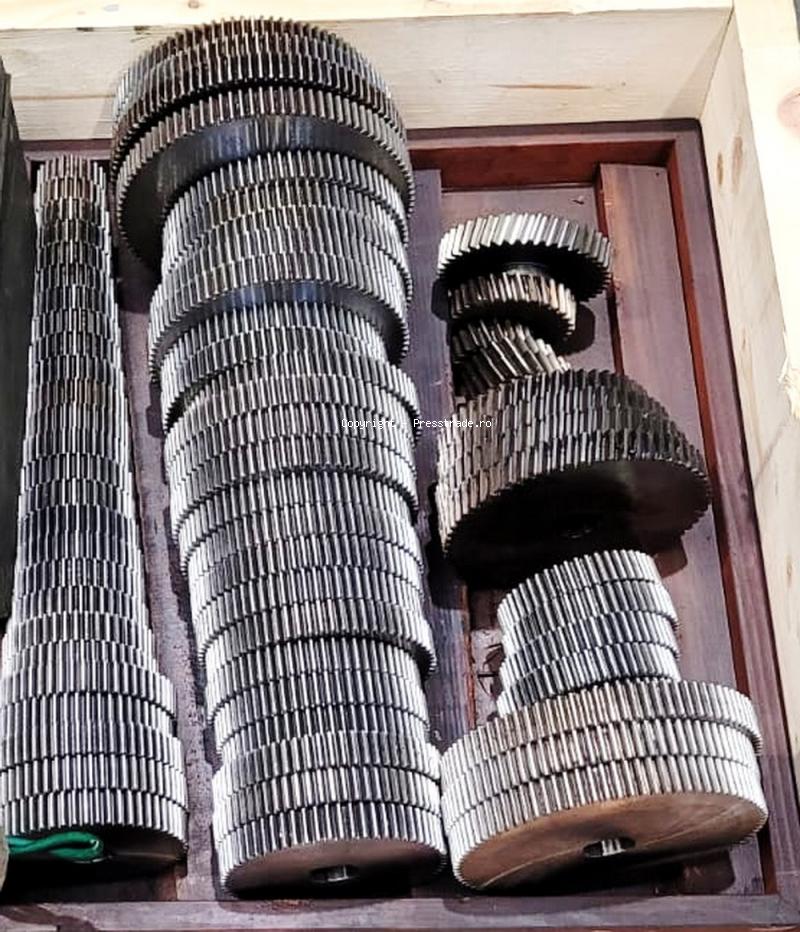

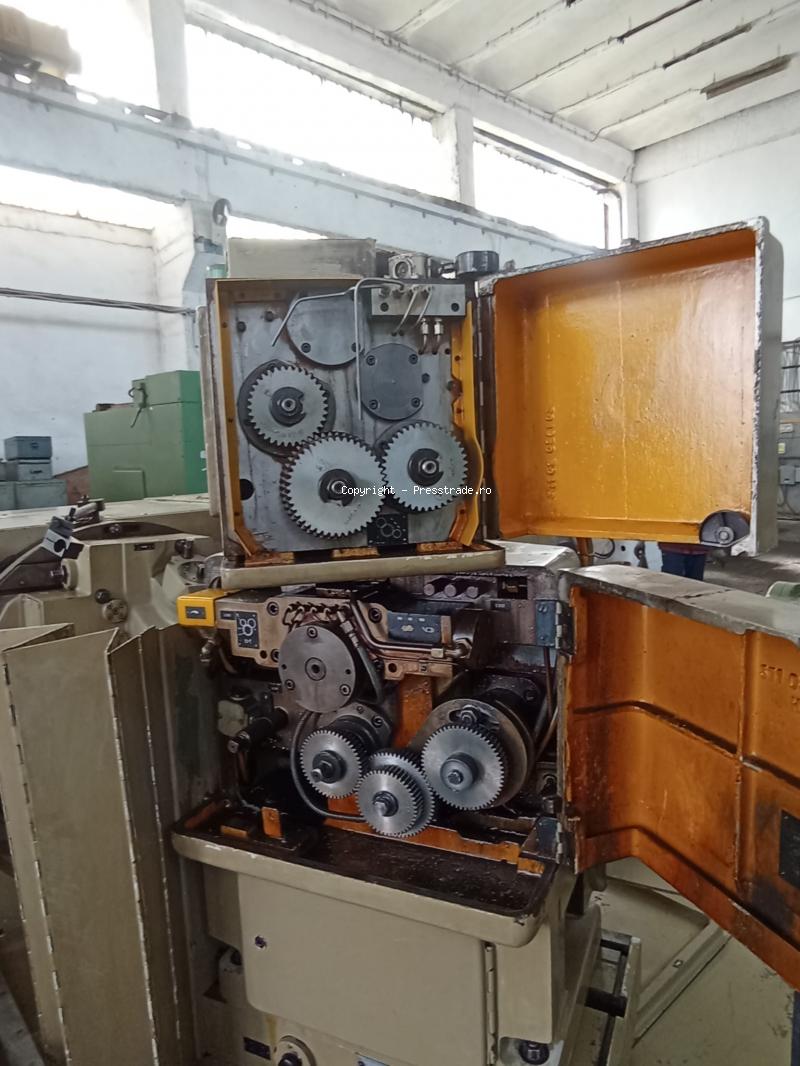

- change gears

- chip conveyor

Location: PRESSTRADE Romania warehouse.
